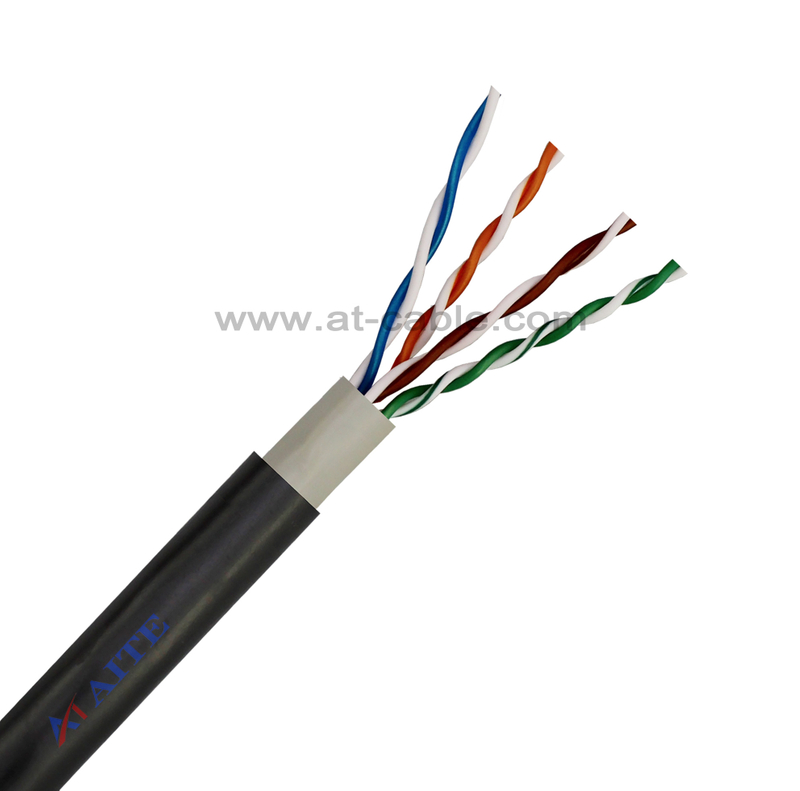

CAT5E DOUBLE JACKET

Length:100m,250m, 305m,500m,1000m,500ft,1000ft
Packing:roll, plastic reel ,carton reel ,wooden spool, carton, pallet
MOQ:10KM
Delivery time:Normally 20 working days
Port of Loading:NINGBO, SHANGHAI
Term of payment:T/T, L/C, D/P at sight
Certificates:CPR, CE, RoHS,ISO9001,REACH
  • 28.6Ω/1000’Max/5% Max
  • BC / 0.50(mm)
  • PE/ 0.90(mm)
  • PVC / 5.20(mm)
Availability:

Material

Diameter(mm)


Conductor

BC

0.50

Insulation

PE

0.90

Jacket

PVC

5.20
Jacket

PE

6.40


BASIC CHARACTERISTICS

Temperature Rating

-20℃ to 60℃

Dielectric Breakdown

2500V

DC Resistance/Unbalance

28.6Ω/1000’Max/5% Max

Characteristics Impedance

100Ω









Other Electric Performance

Frequency

(MHz)

Attenuation

(dB/100m)

Return Loss

(dB/100m)

Pair to Pair

Next

(dB/100m)

ELFEXT

(dB/100m)

0.77

1.80

NA

70.00

69.00

1

2.00

20.00

68.30

66.80

4

4.00

23.00

59.30

54.70

8

5.80

24.50

54.80

48.70

10

6.50

25.00

53.30

46.80

16

8.20

25.00

50.30

42.90

20

9.20

25.00

48.80

40.70

25

10.40

24.30

47.30

38.80

31.25

11.70

23.60

45.90

36.90

62.5

17.00

21.50

41.40

30.80

100

22.00

20.10

38.30

26.80

155

28.10

18.80

35.50

22.90

200

32.40

18.00

33.80

20.70

300

41.00

16.80

32.30

17.20

350

44.9

16.30

30.20

15.90
