FPLR — fire alarm cable is suited for vertical runs in elevator shafts as well as floor-to-floor paths. These cables feature fire-resistant properties, such as the capacity to self-extinguish and emit little harmful smoke. They keep the fire from spreading from floor to floor. FPLR fire alarm cables need to pass the UL 1424 and 1666 vertical riser tests.
UL1424 fire alarm cable serve as a communication line to transmit fire information to various communication nodes with rapid dissemination.
Mainly used in emergency lighting, fire observation, signal sensing system, air supply and exhaust fan system, communication call system, equipment control system, fire pump and fire alarm system circuit.

TYPE FPLR CABLE – Cable that is intended for use in vertical runs in a shaft, or for installations in which the cable penetrates more than one floor, as specified in section 760-154(B) of the National Electrical Code ANSI/NFPA 70.

Conductor:25AWG-12AWG: conductor according to UL 1581
Insulation: Flame retardant PVC
Circuit Protective Conductor, Tinned Copper or  Copper:
Overall Screen: AL/PET (Aluminium/Polyester Tape),
Sheath:Flame retardant PVC

✮Flame Propagation(Multiple cables) ：UL1666
✮Flame Propagation(single Insulation)：UL2556
✮Flame spread of single core cable：UL1581
✮Fire resistance(single cable) ：UL1581
✮Fire resistance time（Multiple cables）：30min

Voltage Rating:300V
Temperature limits: -20°C to +105°C
Minimum Bending Radius: 10～15 times cable outer diameter
Should not be installed at temperatures below 0°C or above+40°C
For more information, please consult us

Outer sheath color:

E-Bare Earth conductor:
2 core

3 core

4 core

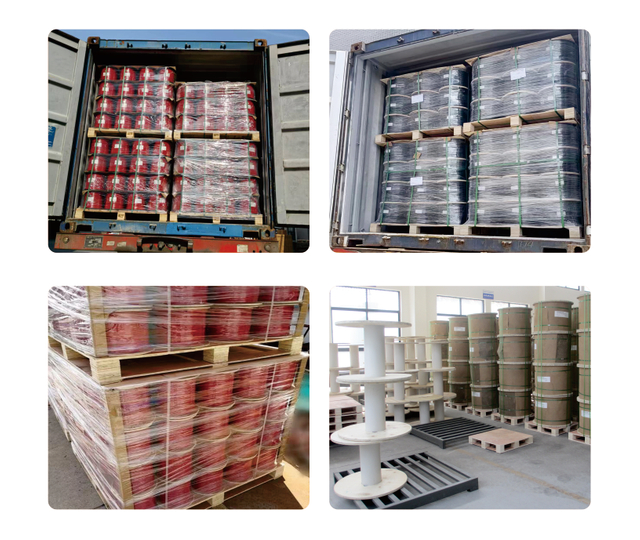

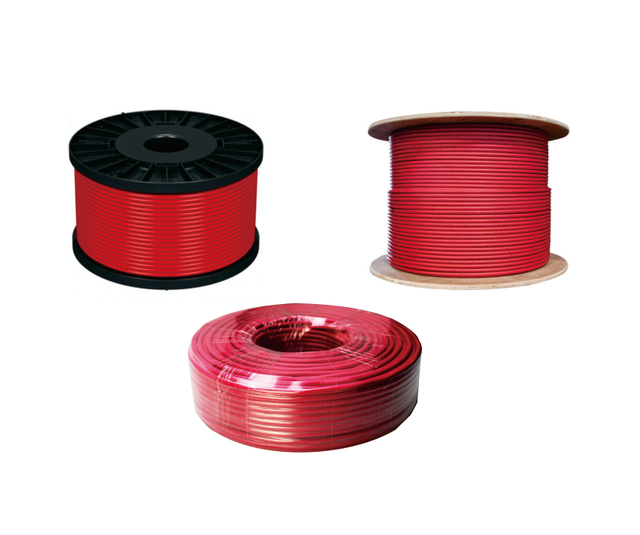

Normally the cables are packed by drum,carton and put on the pallet and other customized packing are available as per international standard.

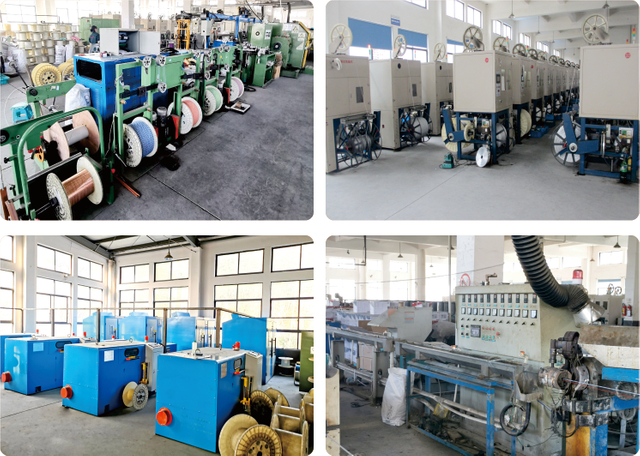

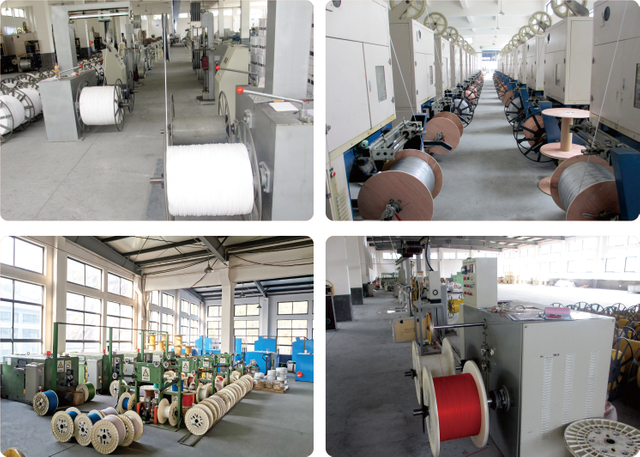

Premium production capacity: Monthly production capacity of 6,000,000 meters of cables based on modern automated production lines and 24-hour production system.
Traceable and strict quality inspection procedures: Material inspection before production, index inspection during production, general quality inspection after production and packaging inspection before shipment.

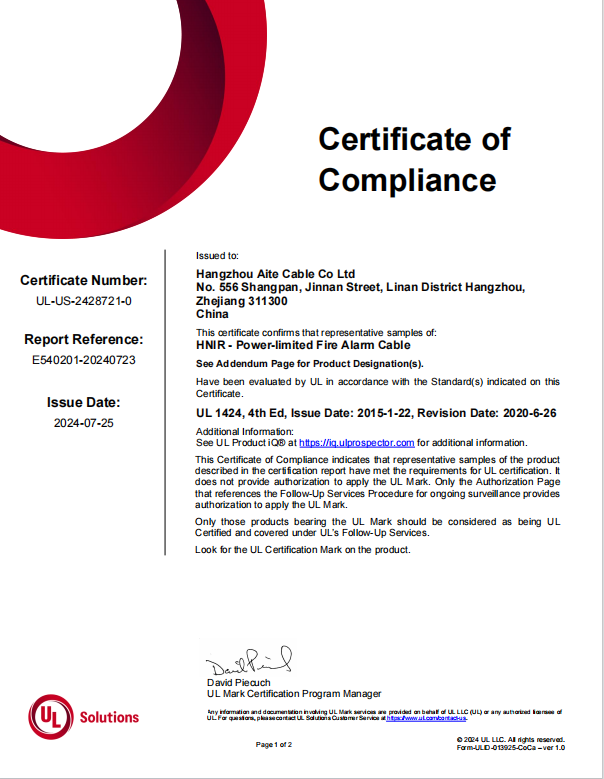

Complete certificate guarantee: ISO9001 certification, CE certification, UL certification, VDE certification, RoHS certification, REACH certification, CPR certification and etc.
Customized and efficient packaging.
7*24 hours after-sales service-professionals provide you with tailored-made services and consultations around the clock.
We could provide both OEM and ODM services.

We are able to reply to your inquiry in 2 hours on working time and in 12 hours during closing time. Feel free to call us for urgent marine data cable inquiry at any time.

Our Patch cord is type approved by ABS & DNV-GL. We ensure a full refund to clients if the marine data and communication cables are not approved.

We have a large stock of Profinet cable approved data cable and can deliver to you in 2 working days as your urgent demand.

Our Patch cord are approved by ABS & DNV-GL classification societies. Worthy of your trust.
