CAT5E

Comparing to CAT5, CAT5e cable has lower attenuation, less crosstalk, and higher attenuation to crosstalk ratio(ACR) and signal to noise ratio(SNR), smaller delay difference, the performance is greatly improved. CAT5e is mainly used in 1000Base-T Ethernet, guaranteed bandwidth can reach 155MHz.

● Meet ANSI/TIA-568-C.2 Category 5e and ISO 11801 2nd Edition Class D channel standards. IEC61156-5
● Supports 1000BASE-T applications – IEEE 802.3ab
● Supports Power over Ethernet – 2 pairs – IEEE 802.3af and IEEE 802.3at.
● Product family includes UTP, F/UTP, LSZH, PVC/PE, Commercial and Industrial cables.
IMG_0200
Image Product Name DC Resistance/Unbalance Conductor Insulation Jacket Details Inquiry
U/UTP CAT5E U/UTP CAT5E 28.6Ω/1000’Max/5% Max BC/ 24AWG HDPE/ 0.90(mm) PVC / 5.00(mm) View detail » Inquire

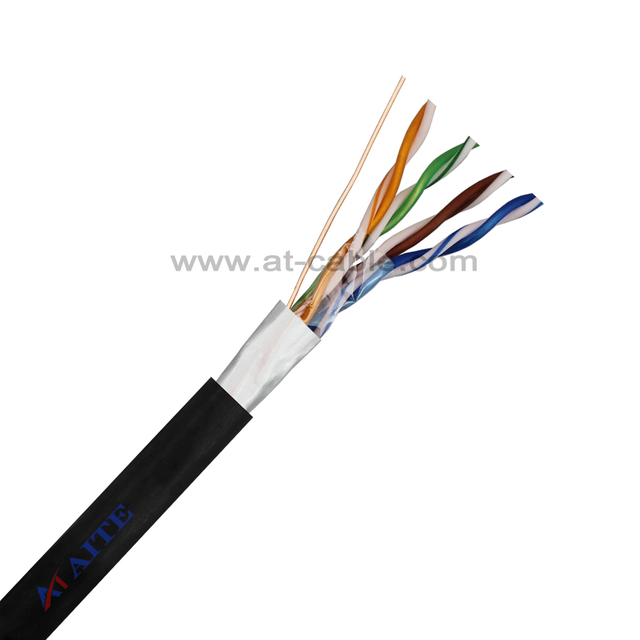

F/UTP CAT5E F/UTP CAT5E 28.6Ω/1000’Max/5% Max BC / 24AWG HDPE/ 0.90(mm) PVC / 6.10(mm) View detail » Inquire
SF/UTP CAT5E SF/UTP CAT5E 28.6Ω/1000’Max/5% Max BC / 24AWG HDPE/ 0.90(mm) PVC / 6.60(mm) View detail » Inquire
CAT5E DOUBLE JACKET CAT5E DOUBLE JACKET 28.6Ω/1000’Max/5% Max BC / 24AWG HDPE/ 0.90(mm) PVC+PE/ 6.20(mm) View detail » Inquire
F/UTP CAT5E WITH MESSENGER F/UTP CAT5E WITH MESSENGER 28.6Ω/1000’Max/5% Max BC / 24AWG(mm) HDPE/ 0.90(mm) PVC / 6.10(mm) View detail » Inquire

AITE Cable Owns A Complete Range of Type Approval Certificates

1_174x171
2_174x171
3_174x171
4
certificate23

Why Choose Us

Quick Reponse

We are able to reply to your inquiry in 2 hours on working time and in 12 hours during closing time. Feel free to call us for urgent marine data cable inquiry at any time.

Trade Insurance

Our LAN cable is type approved by ABS & DNV-GL. We ensure a full refund to clients if the marine data and communication cables are not approved.

Fast Delivery

We have a large stock of Cat.5E,  marine approved data cable and can deliver to you in 2 working days as your urgent demand.

ABS & DNV-GL Approved

Our Cat.5E S/FTP,  marine Ethernet cables are approved by ABS & DNV-GL classification societies. Worthy of your trust.

Your Premier Lan Cable Manufacturer

Hangzhou Aite cable Co., Ltd. is a Chinese wire & cable manufacturer specializing in manufacturing Coaxial Cable, Lan Cable, Alarm Cable, Security Cable, Power Cable, Speaker cable, Audio Cable, CCTV Cable, Telephone Cable, and Cable Materials.

Founded in 2012, our company has blossomed into one of the largest independent manufacturer and exporter in China. We have a study and design team, a professional team of engineers and skilled workers, and also advanced lines and machines which can provide our customers with outstanding quality, service, and price.

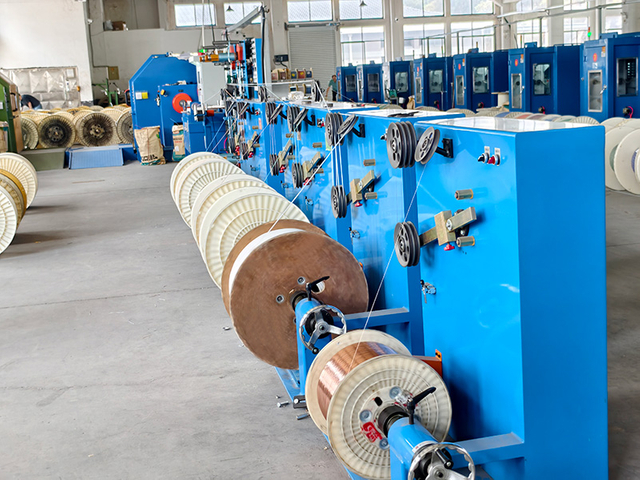

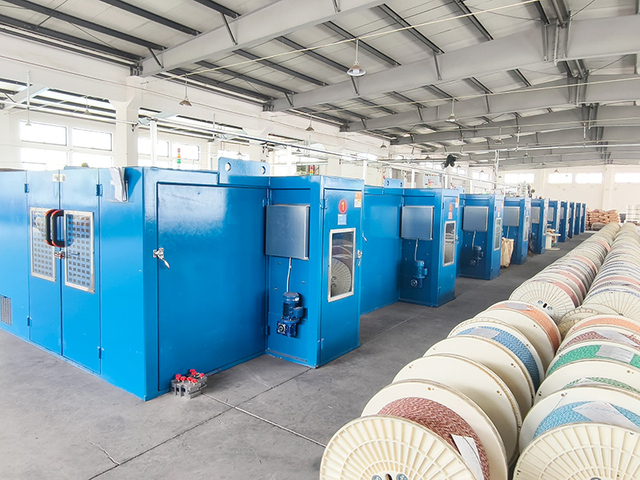

Production-Equipment2
Production-Equipment5
Production-Equipment1
Production-Equipment3
Production-Equipment7
Production-Equipment6

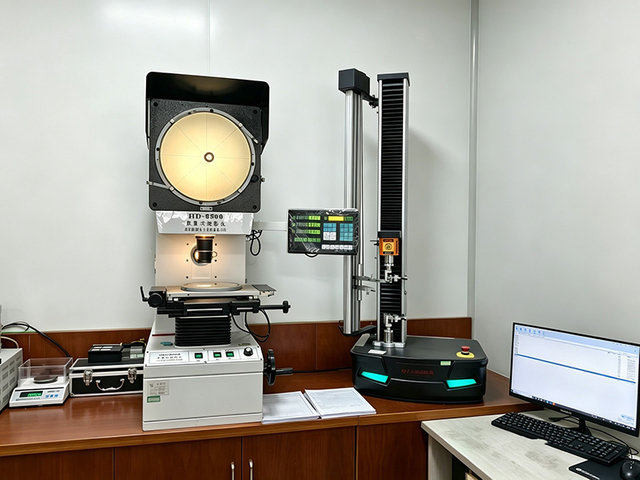

Quality Control

quality-corter
Do You Have Questions or Comments?
We Can Help!
Hangzhou Aite cable Co., Ltd. is a China-based wire & cable manufacturer specializing in tracer wire for underground utility locating, with additional OEM cable manufacturing capabilities for LAN cable, coaxial cable, alarm cable, fire alarm cable, control cable and low-voltage cable products.
