CAT6A

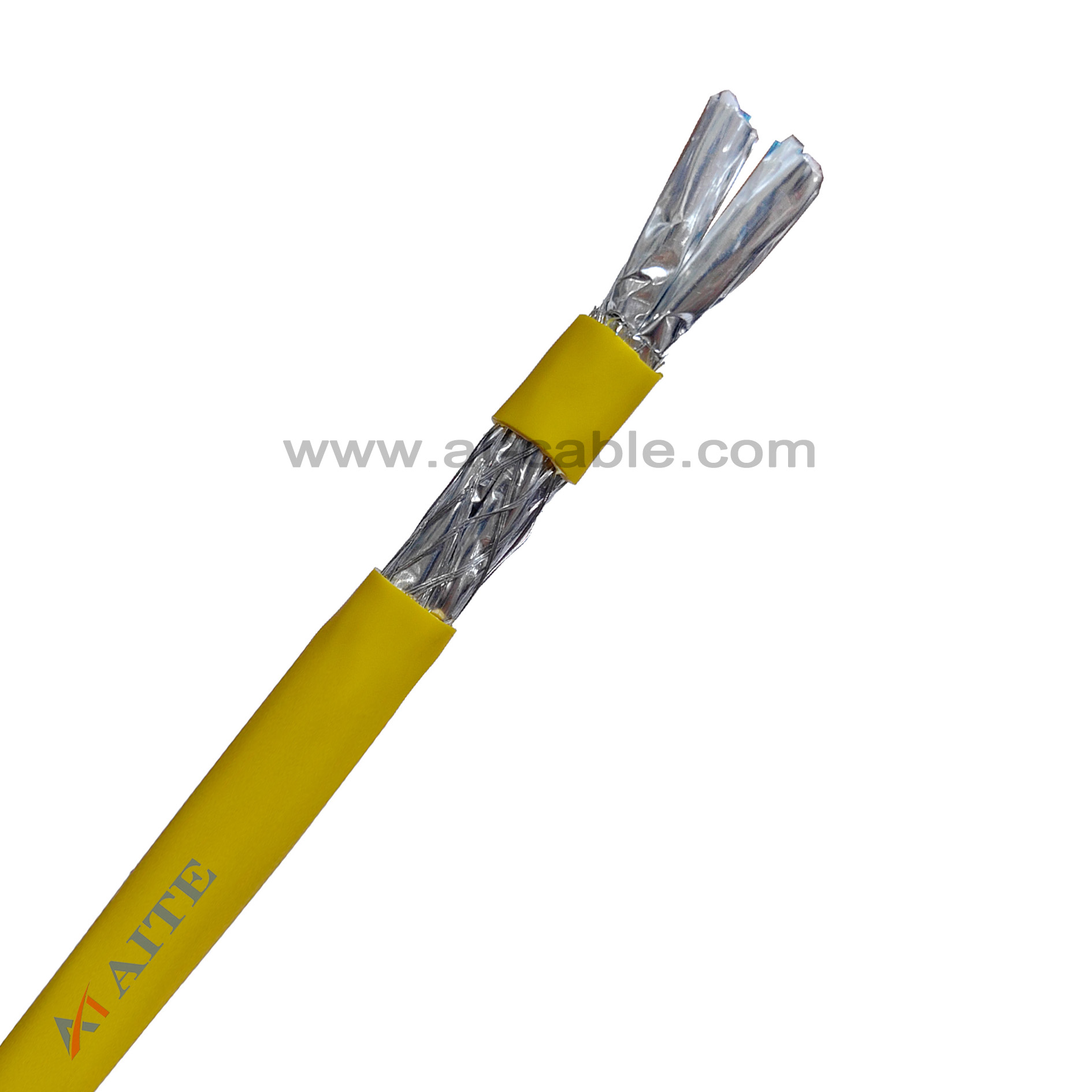

Cat6A Ethernet cable is an enhanced version of Cat6, a fully shielded (typically S/FTP F/UTP with optional overall shielding) cable that supports speeds of up to 10,000 Mbps (10 Gbps) and bandwidths of up to 500 MHz. Cat6A cables feature improved twisted pair design and stricter crosstalk specifications compared to standard Cat6 cables, delivering reliable 10 Gigabit Ethernet performance over the full 100-meter channel length.
Standard
ISO/IEC 11801, TIA/EIA-568.2-D, IEC 60332-1, IEC 60332-3-24, EN 50399
●Supports applications including VoIP, ISDN, Token Ring, analog and digital video, and high-speed data transmission.
●Compliant with IEEE 802.3 standards: 100Base-T, 1000Base-T, and 10GBase-T.
●Stable 10G Ethernet transmission with test bandwidth up to 500 MHz over 100 meters.
● Enhanced alien crosstalk protection ensures consistent signal performance in dense cabling environments.
CAT6A
Image Product Name DC Resistance/Unbalance Conductor Insulation Jacket Details Inquiry
SF/UTP CAT6A SF/UTP CAT6A 28.98Ω/1000’Max/5% Max BC / 23AWG HDPE/ 1.12(mm) LSZH/ 7.80(mm) View detail » Inquire
S/FTP CAT6A Orange S/FTP CAT6A Orange 28.98Ω/1000’Max/5% Max BC / 23AWG Skin-foam-skin PE/ 1.33(mm) LSZH/ 7.60(mm) View detail » Inquire
S/FTP CAT7 YELLOW S/FTP CAT6A Yellow 28.98Ω/1000’Max/5% Max BC / 23AWG Skin-foam-skin PE/ 1.33(mm) LSZH/ 7.60(mm) View detail » Inquire
CAT6A S/FTP CAT6A Blue 28.98Ω/1000’Max/5% Max BC / 23AWG Skin-foam-skin PE/ 1.33(mm) LSZH/ 7.60(mm) View detail » Inquire
