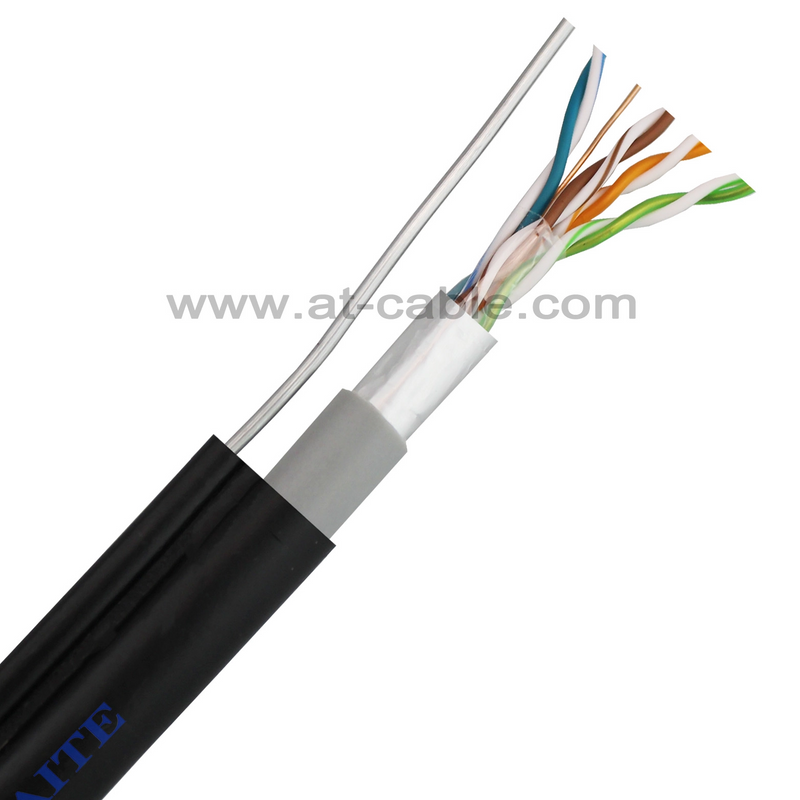

F/UTP CAT5E WITH MESSENGER

  • 100m,250m, 305m,500m,1000m,500ft,1000ft

  • roll, plastic reel ,carton reel ,wooden spool, carton, pallet

  • 10KM

  • NINGBO, SHANGHAI

  • T/T, L/C, D/P at sight

  • CPR, CE, RoHS,ISO9001,REACH

  • Normally 20 working days

  • 28.6Ω/1000’Max/5% Max

  • BC / 24AWG(mm)

  • PE/ 0.90(mm)

  • PVC / 6.10(mm)

Availability:

CAT 5E

Comparing to CAT5, CAT5e cable has lower attenuation, less crosstalk, and higher attenuation to crosstalk ratio(ACR) and signal to noise ratio(SNR), smaller delay difference, the performance is greatly improved. CAT5e is mainly used in 1000Base-T Ethernet, guaranteed bandwidth can reach 155MHz.


● Meet ANSI/TIA-568-C.2 Category 5e and ISO 11801 2nd Edition Class D channel standards. IEC61156-5

● Supports 1000BASE-T applications – IEEE 802.3ab

● Supports Power over Ethernet – 2 pairs – IEEE 802.3af and IEEE 802.3at.

● Product family includes UTP, F/UTP, LSZH, PVC/PE, Commercial and Industrial cables.

Contact Us Now

Construction


Material

Diameter(mm)

Conductor

BC

24AWG

Insulation

PE

0.9

AL Foil shield



Jacket

PVC

6.10

Rip cord: Per request



Messenger

Galvanized Steel

1.15

Basic characteristics

Temperature Rating

-20℃ to 60℃

Dielectric Breakdown

2500V

DC Resistance/Unbalance

28.6Ω/1000’Max/5% Max

Characteristics Impedance

100






Other Electric Performance
















Frequency

(MHz)


Attenuation

(dB/100m)


Return Loss

(dB/100m)


Pair to Pair

Next

(dB/100m)

ELFEXT

(dB/100m)

0.77

1.80

NA

70.00

69.00

1

2.00

20.00

68.30

66.80

4

4.00

23.00

59.30

54.70

8

5.80

24.50

54.80

48.70

10

6.50

25.00

53.30

46.80

16

8.20

25.00

50.30

42.90

20

9.20

25.00

48.80

40.70

25

10.40

24.30

47.30

38.80

31.25

11.70

23.60

45.90

36.90

62.5

17.00

21.50

41.40

30.80

100

22.00

20.10

38.30

26.80

155

28.10

18.80

35.50

22.90

200

32.40

18.00

33.80

20.70

300

41.00

16.80

32.30

17.20
