PH120 2C
100m,250m, 305m,500m,1000m,500ft,1000ft
roll, plastic reel ,carton reel ,wooden spool, carton, pallet
10KM
NINGBO, SHANGHAI
T/T, L/C, D/P at sight
CPR, CE, RoHS,ISO9001,REACH
Normally 20 working days
BC/CCA
PVC/PH120

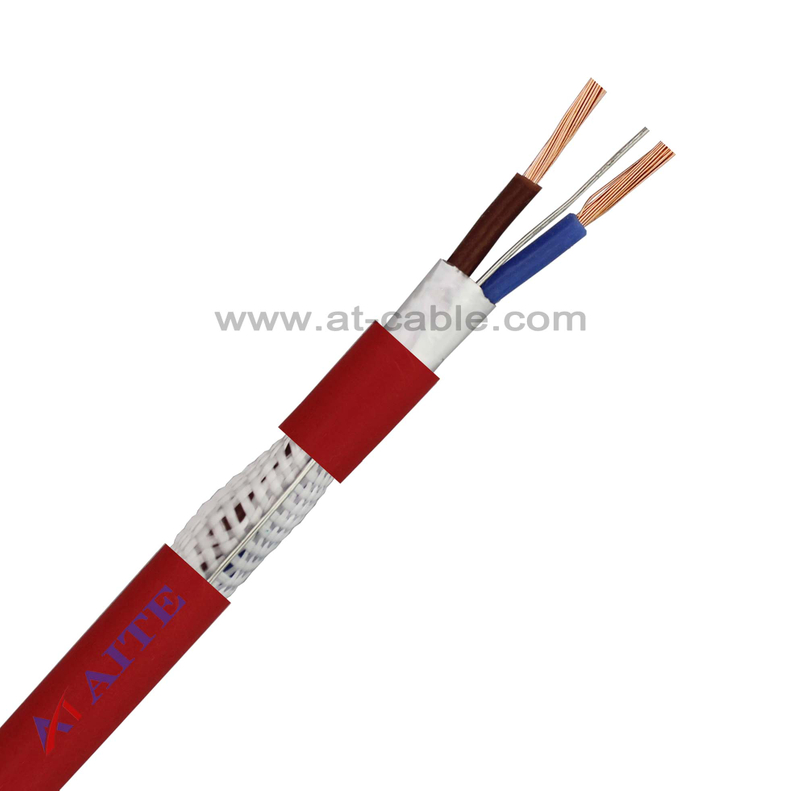

Fire Alarm Cable
The superiority of fire cables
1. High temperature resistance and fire resistance: Because the main materials of flexible mineral insulated fire-proof cables are composed of mineral compounds, it will not cause fire in itself, and it is impossible to burn or facilitate combustion. The mica belt generally has a high melting point of more than 1500℃, so the fire cable can play a normal transmission function even under the fire conditions, which is a real sense of fire cable.
2. Irradiation resistance and aging resistance: mineral insulation flexible fire cable using inorganic mineral insulation material as insulation, the material will not aging or deterioration, insulation characteristics will not change; while the cable out jacket is of copper rolling form, with good sealing, moisture-proof, anti-corrosion.
3. Green environmental protection characteristics: the cable structure materials are inorganic mineral materials, cables will not release toxic gas in the burning flame; abandoned cables can be recycled, will not pollute the natural environment .
Basic Construction |
2C | ||||
Conductor | Material | BC/CCA | ||
Nom.Dia(mm) | 0.64 | 0.78 | 1.01 | |
SQ(mm2) | 1 | 1.5 | 2.5 | |
Dielectric | Material | Silicone | ||
Nom.Dia(mm) | 2.4 | 2.8 | 3.4 | |
Drain wire | Material | TC | ||
Shield | Material | PET/Aluminum Foil | ||
Jacket | Material | PVC/PH120 | ||
Nom.Dia(mm) | 6.8 | 7.2 | 9.0 | |
Basic Characteristics |
Temperature Rating | -30℃ to 90℃ | ||
Operating Voltage | 300V | ||
DC Resistance per Conductor@ 20℃ | 18.1 Ohms/1KM’Nom | 12 Ohms/1KM’Nom | 7.4Ohms/1KM’Nom |

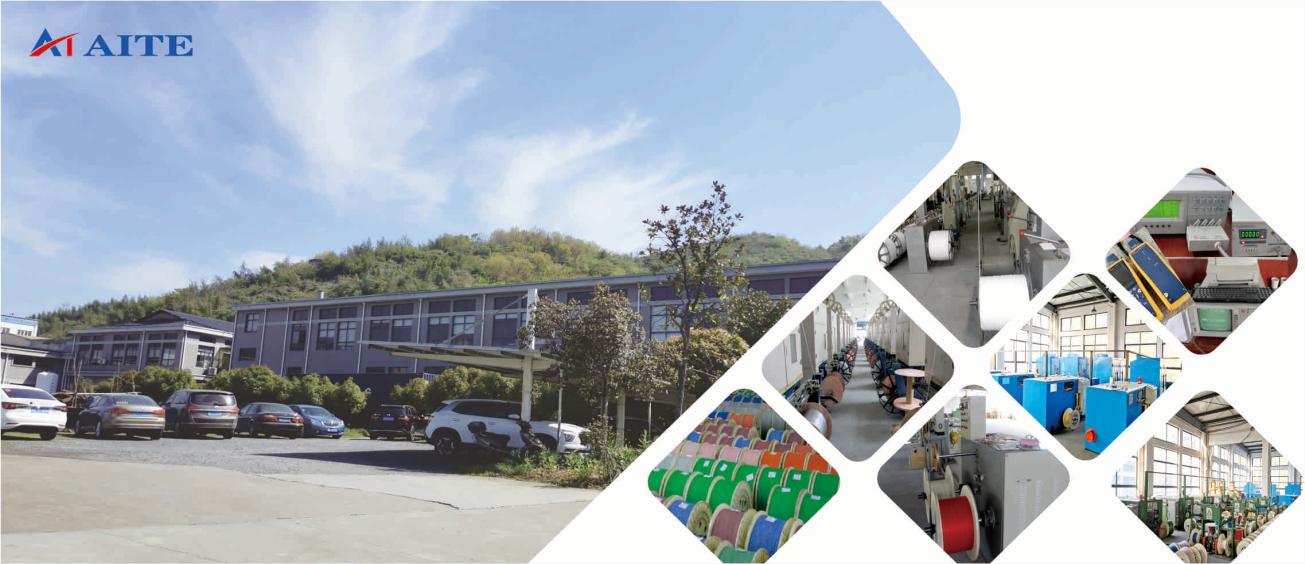

The Factory |
Hangzhou Aite Cable Co., LTD. is one of the leading manufacturers of coaxial cables，lan cables, security cables, alarm cables, and CCTV cables for camera etc,. With certification of CE, ROHS Compliant, and ISO 9001. Our factory is located in Lin'an, Hangzhou, China, which is only 200kms away from Shanghai, and 40kms away from Hangzhou.
Founded in 2012, our company has blossomed into one of the largest independent manufacturer and exporter in China. We have a study and design team, a professional team of engineers and skilled workers, and also advanced lines and machines which can provide our customers with outstanding quality, service, and price.

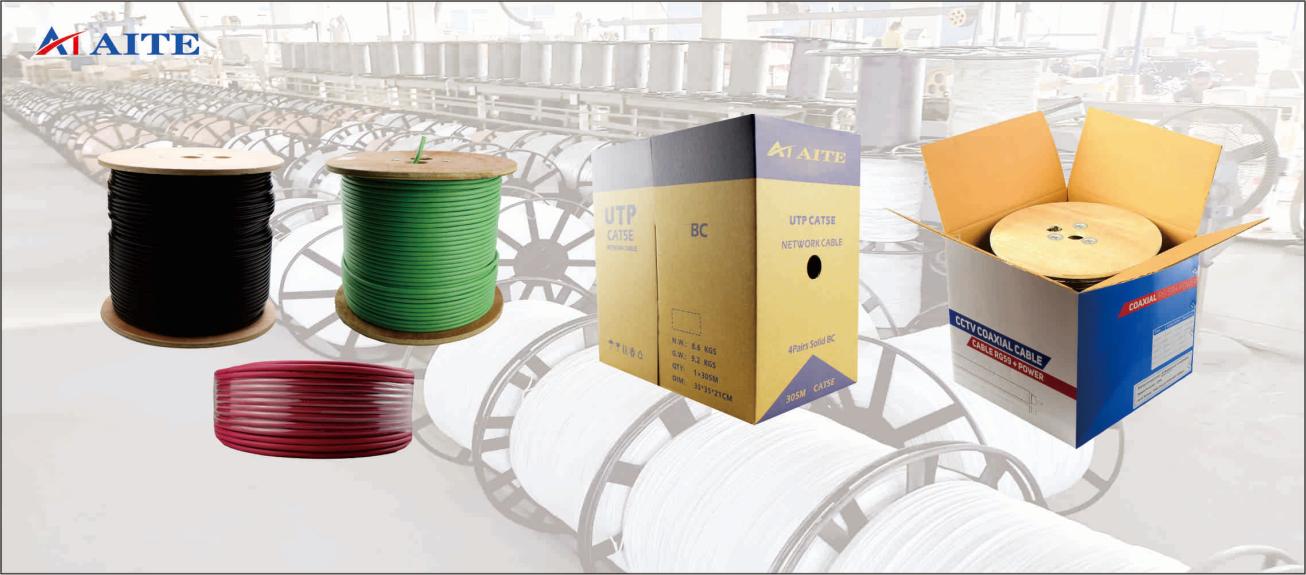

Packing |
Why choose us |
Good Price
We provide good factory price to to ensure your profit.
Quality Control
We perform strict inspections on raw materials and production processes. There are four QC steps before cables leave factory. 1. Raw materials incoming test 2. Semi-finished product test for each production line . 3. Finished product test(Construction & Electrical Characteristics) 4. Cable power test and package inspection.
On-time Delivery
Our monthly output is 6000KM. Sample available in 7 days, and normal order delivery time is only 15-25 days.
R&D
Our technical team has rich experience in developing various specifications of cables for customized orders. According to the customized requirements, our team are capable to provide suggestions and designs.
Reliable Service
For before-order stage, our professional sales team are ready to reply your inquiry at first time during working hours and within 12 hours at close time to help you win your client with perfect option at high efficiency.
For order-running stage, our professional service team will update the production and provide documents for shipment in time .
For after-sale stage, our service team always keep close contact with you and always stand by at your service. We’re responsible for all the products during its normal lifetime.
