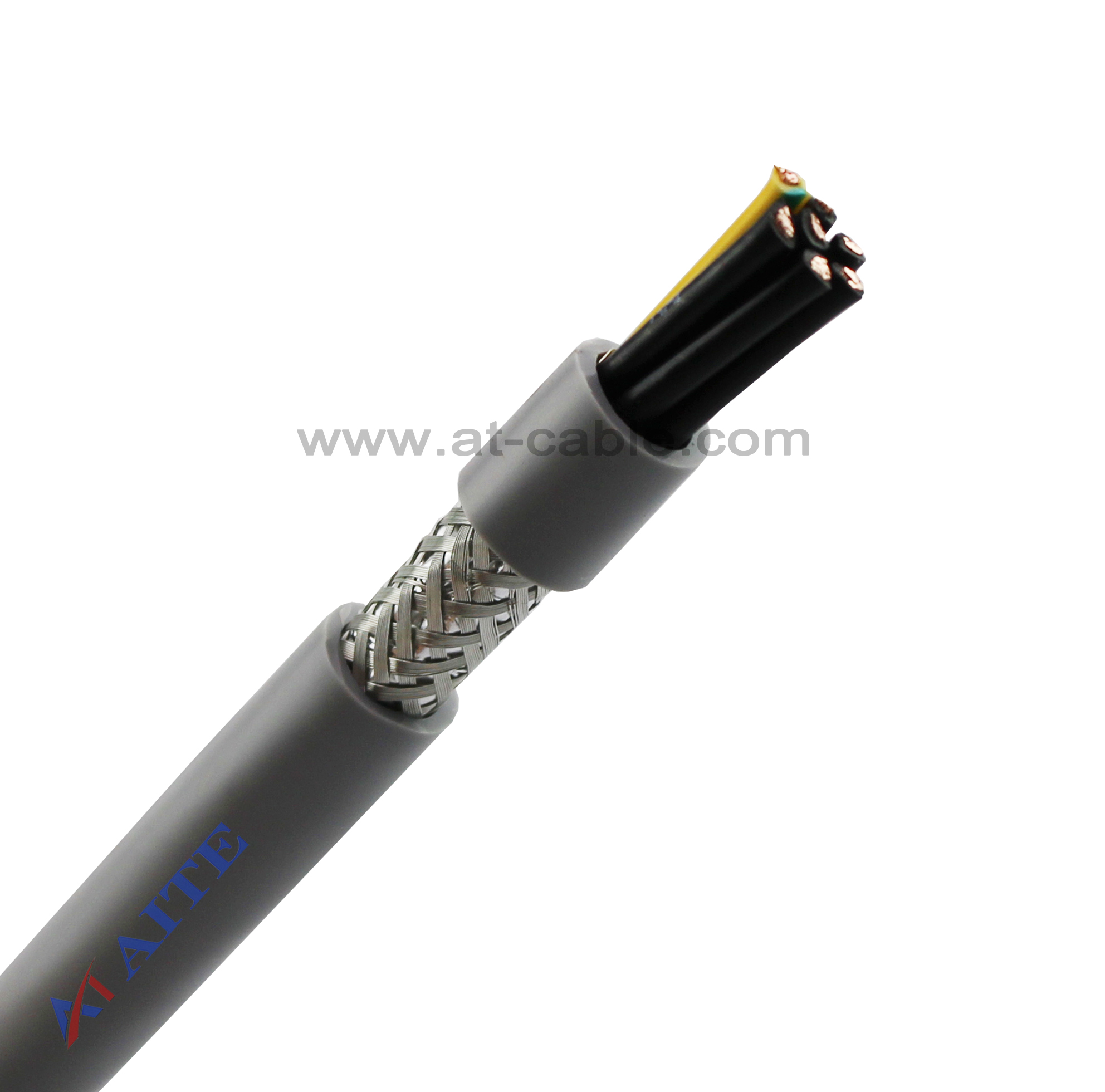

CY series are shielded flexible cables used as interconnection for control, regulation and measurement in control equipment.Applications include: assembly, production line, conveyors and computer devices.The CY cable is an ideal choice for disturbance-free transmission.
Description |
Conductor | Plain Annealed Flexible Copper |
Insulation | PVC,TI2 acc.to EN 50363-3VDE0207-363-3 LSZH(Low Smoke Zero Halogen) |
sheath material | PVC,TM54 acc.to VDE 819-102(TM54) LSZH(Low Smoke Zero Halogen) |
Electrical Characteristics |
Voltage Rating Uo/U | 300/500V |
Temperature Rating | Fixed: -40℃ to +80℃ Flexed: -5℃ to +70℃ |
Minimum Bending Radius | Fixed: 4 x overall diameter Flexed: 12.5 x overall diameter |
Conductor Resistance |
Nominal Cross Sectional Area(m㎡) | Maximum Diameter Of Wire In Conductor mm | Maximum Resistance Conductor At 20℃ |
0.50 | 9.0 | 39.00 |
0.75 | 12.0 | 26.00 |
1.00 | 15.0 | 19.50 |
1.50 | 18.0 | 13.30 |
2.50 | 26.0 | 7.98 |
4.00 | 34.0 | 4.95 |
6.00 | 44.0 | 3.30 |
10.00 | 61.0 | 1.91 |
16.00 | 82.0 | 1.21 |
Current Capacity |
Nominal Cross Sectional Area(m㎡) | Current Carry Capacity At 30℃ In Air Amps | Current Carry Capacity At 30℃ In Conduit(amps) |
0.50 | 16.0 | 9.00 |
0.75 | 20.0 | 12.00 |
1.00 | 24.0 | 15.00 |
1.50 | 32.0 | 18.00 |
2.50 | 42.0 | 26.00 |
4.00 | 54.0 | 34.00 |
6.00 | 73.0 | 44.00 |
10.00 | 98.0 | 61.00 |
16.00 | 16.0 | 9.00 |
Voltage Drop |
Nominal Cross Sectional Area(m㎡) | Two Core Cable DC Mv/a/m | Sing Phase Two Core Cable Ac Mv/a/m | Three Phase 3 or 4 Core Cable Ac Mv/a/m |
1.00 | 44.0 | 44.0 | 38.0 |
1.50 | 29.0 | 29.0 | 25.0 |
2.50 | 18.0 | 18.0 | 15.0 |
4.00 | 11.0 | 11.0 | 9.50 |
6.00 | 7.30 | 7.30 | 6.40 |
10.00 | 4.40 | 4.40 | 3.80 |
16.00 | 2.80 | 2.80 | 2.40 |
Dimensions |
Conductor Size(m㎡) | Stranding(mm) | No.Of Cores | Weidht(kg/km) | Outside Diameter(mm) | Gland Size (mm) |
0.5 | 16/0.20 | 2 | 41.0 | 5.0 | 20/16 |
0.5 | 16/0.20 | 3 | 50.0 | 5.2 | 20/16 |
0.5 | 16/0.20 | 4 | 66.0 | 6.2 | 20/16 |
0.5 | 16/0.20 | 5 | 79.0 | 7.0 | 20/16 |
0.5 | 16/0.20 | 7 | 102.0 | 7.2 | 20/16 |
0.75 | 24/0.20 | 2 | 43.0 | 5.5 | 20/16 |
0.75 | 24/0.20 | 3 | 52.0 | 5.8 | 20/16 |
0.75 | 24/0.20 | 4 | 68.0 | 6.5 | 20/16 |
0.75 | 24/0.20 | 5 | 80.0 | 7.1 | 20/16 |
0.75 | 24/0.20 | 7 | 103.0 | 7.6 | 20/16 |
0.75 | 24/0.20 | 12 | 161.0 | 9.9 | 20s |
1.00 | 32/0.20 | 2 | 53.0 | 6.3 | 20/16 |
1.00 | 32/0.20 | 3 | 64.0 | 6.4 | 20/16 |
1.00 | 32/0.20 | 4 | 84.0 | 7.2 | 20/16 |
1.00 | 32/0.20 | 5 | 100.0 | 7.8 | 20/16 |
1.00 | 32/0.20 | 7 | 125.0 | 8.5 | 20/16 |
1.00 | 32/0.20 | 12 | 209.0 | 11.3 | 20s |
1.50 | 30/0.25 | 2 | 61.0 | 6.5 | 20/16 |
1.50 | 30/0.25 | 3 | 78.0 | 6.9 | 20/16 |
1.50 | 30/0.25 | 4 | 104.0 | 7.7 | 20/16 |
1.50 | 30/0.25 | 5 | 128.0 | 8.6 | 20s |
1.50 | 30/0.25 | 7 | 159.0 | 9.2 | 20.0 |
1.50 | 30/0.25 | 12 | 281.0 | 12.7 | 25.0 |
2.50 | 30/0.25 | 2 | 102.0 | 8.0 | 20/16 |
2.50 | 50/0.25 | 3 | 117.0 | 8.4 | 20/16 |
2.50 | 50/0.25 | 4 | 168.0 | 9.2 | 20s |
2.50 | 50/0.25 | 5 | 199.0 | 10.3 | 20s |
2.50 | 50/0.25 | 7 | 252.0 | 11.2 | 20s |
2.50 | 50/0.25 | 12 | 500.0 | 16.8 | 25.0 |
4.00 | 56/0.30 | 2 | 165.0 | 10.5 | 20s |
4.00 | 56/0.30 | 3 | 186.0 | 10.3 | 20s |
4.00 | 56/0.30 | 4 | 239.0 | 11.8 | 20s |
4.00 | 56/0.30 | 5 | 301.0 | 13.0 | 20s |
6.00 | 84/0.30 | 4 | 327.0 | 12.9 | 20s |
6.00 | 84/0.30 | 5 | 543.0 | 16.7 | 25.0 |
10.0 | 80/0.40 | 4 | 553.0 | 17.2 | 25.0 |
16.0 | 126/0.40 | 4 | 846.0 | 21.0 | 32.0 |
