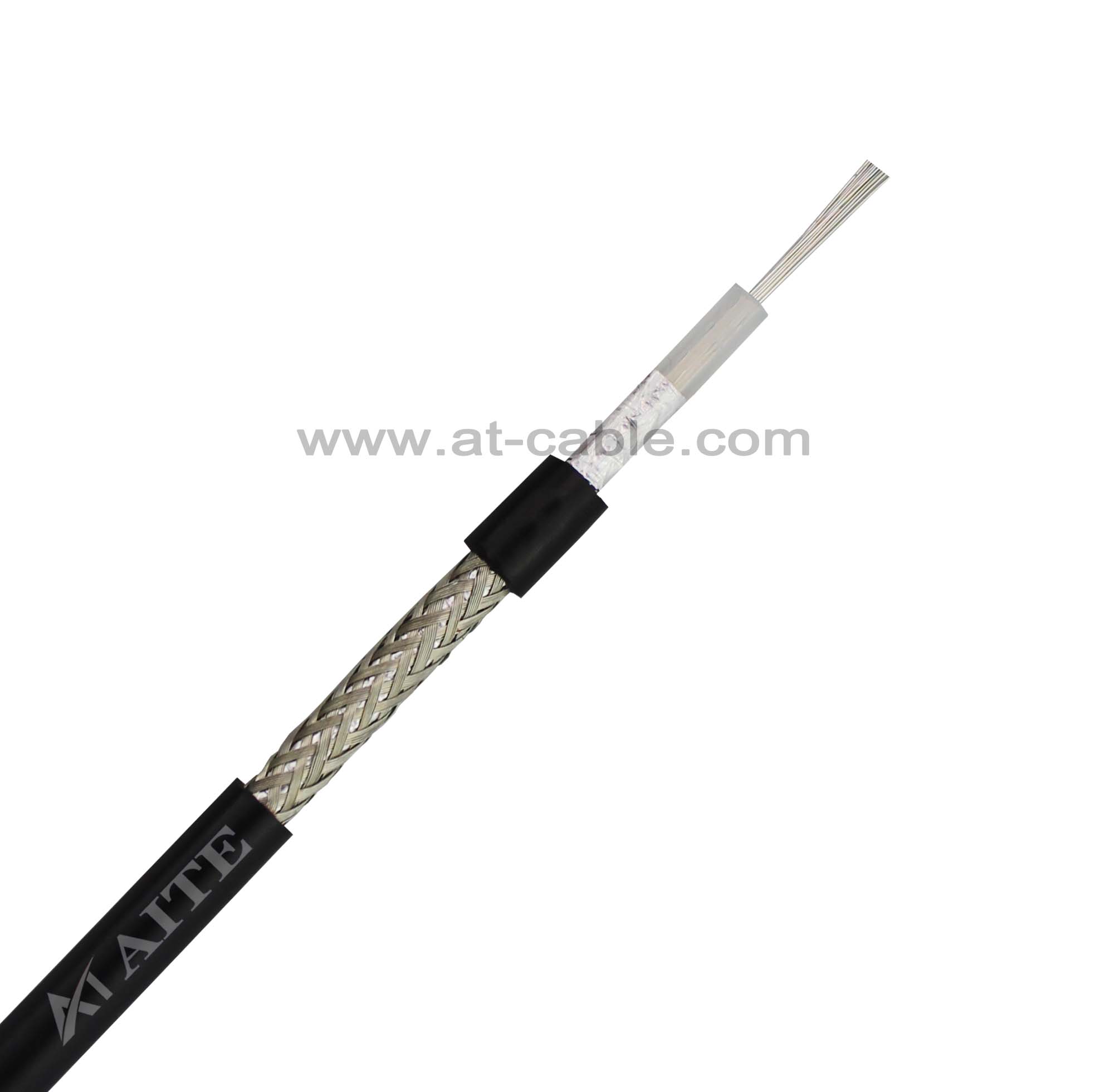

RG58 Coaxial Cable

Length:100m,250m, 305m,500m,1000m,500ft,1000ft Packing:roll, plastic reel ,carton reel ,wooden spool, carton, pallet MOQ:10KM Delivery time:Normally 20 working days Port of Loading:NINGBO, SHANGHAI Term of payment:T/T, L/C, D/P at sight Certificates:CPR, CE, RoHS,ISO9001,REACH
  • RG58
  • Tinned Copper
  • PVC
Availability:

RG58

Construction


Material

Diameter(mm)

    Inner Conductor

Tinned Copper

19*0.18

  Dielectric

Solid PE

2.95

  Shield

TC Braid

3.45

Jacket

PVC

4.95


Electrical Characteristics

    Capacitance (pF/m)

101.0

Impedance (Ω)

50.0

Velocity of Propagation(﹪)

 66.0

Conductor DCR (Ohm/km)

35.4
Outer Shield DCR (Ohm/km)

13.5

Max Operating Frequency (MHZ)

1000.0

Max Operating Voltage (RMS)

 1900.0

Operating Temp Range (℃)

-20to 85


Attenuation(@20℃)

Frequency (MHZ)

Max Attenuation (dB/100ft)

Max Attenuation (dB/100m)

10

 1.5

 4.9

50

  3.3

10.9

100

4.7

15.5

 200

7.5

 24.5

 400

 10.6

 34.8

 600

   12.1

 39.6

860

17.2

 56.4

  1000

   18.4

 60.5
