100m,250m, 305m,500m,1000m,500ft,1000ft
roll, plastic reel ,carton reel ,wooden spool, carton, pallet
30KM
NINGBO, SHANGHAI
T/T, L/C, D/P at sight
CPR, CE, RoHS,ISO9001,REACH
Normally 20 working days
28.98Ω/1000’Max/5% Max
BC / 23AWG
Skin-foam-skin PE/ 1.33(mm)
LSZH/ 7.60(mm)
Tinned Copper / Al-Mg Ally/40% Coverage
CAT6A

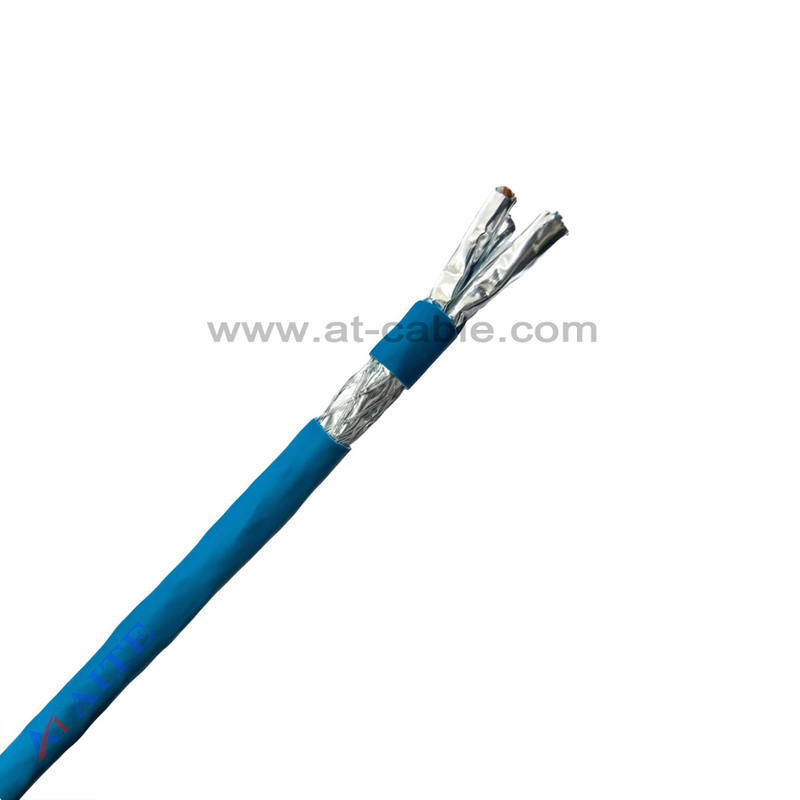

Cat6A Ethernet cable is an enhanced version of Cat6, a fully shielded (typically S/FTP F/UTP with optional overall shielding) cable that supports speeds of up to 10,000 Mbps (10 Gbps) and bandwidths of up to 500 MHz. Cat6A cables feature improved twisted pair design and stricter crosstalk specifications compared to standard Cat6 cables, delivering reliable 10 Gigabit Ethernet performance over the full 100-meter channel length.
Standard
ISO/IEC 11801, TIA/EIA-568.2-D, IEC 60332-1, IEC 60332-3-24, EN 50399
Supports applications including VoIP, ISDN, Token Ring, analog and digital video, and high-speed data transmission.
Compliant with IEEE 802.3 standards: 100Base-T, 1000Base-T, and 10GBase-T.
Stable 10G Ethernet transmission with test bandwidth up to 500 MHz over 100 meters.
Enhanced alien crosstalk protection ensures consistent signal performance in dense cabling environments.
Construction |
Material | Diameter(mm) | |
Conductor | Bare Copper | 23AWG |
Insulation | Skin-foam-skin Polyethylene | 1.33mm |
Shielded Line Pair | AL Foil | |
Braided Shield | Tinned Copper / Al-Mg Ally | 40% Coverage |
Jacket | LSZH | 7.6mm |
Basic characteristics |
Temperature Rating | -20℃ to 60℃ | ||||||
Dielectric Breakdown | 2500V | ||||||
DC Resistance/Unbalance | 28.61Ω/1000’Max/5% Max | ||||||
Characteristics Impedance | 100Ω | ||||||
Other Electric Performance | Frequency （MHz） | Attenuation （dB/100m） | Return Loss （dB/100m） | Pair to Pair | |||
NEXT （dB/100m） |
ELFEXT （dB/100m） | ||||||
4.0 | 3.8 | 23.0 | 65.3 | 55.8 | |||
8.0 | 5.3 | 24.5 | 60.8 | 49.7 | |||
10.0 | 5.9 | 25.0 | 59.3 | 47.8 | |||
16.0 | 7.5 | 25.0 | 56.2 | 43.7 | |||
20.0 | 8.4 | 25.0 | 54.8 | 41.8 | |||
25.0 | 9.4 | 24.3 | 53.3 | 39.8 | |||
31.25 | 10.5 | 23.6 | 51.9 | 37.9 | |||
62.5 | 15.0 | 21.5 | 47.4 | 31.9 | |||
100.0 | 19.1 | 20.1 | 44.3 | 27.8 | |||
200.0 | 27.7 | 18.0 | 39.8 | 21.8 | |||
250.0 | 31.1 | 17.3 | 38.3 | 19.8 | |||
300.0 | 34.3 | 16.8 | 37.1 | 18.3 | |||
500.0 | 45.3 | 15.2 | 33.8 | 13.8 | |||
