100m,250m, 305m,500m,1000m,500ft,1000ft
roll, plastic reel ,carton reel ,wooden spool, carton, pallet
10KM
NINGBO, SHANGHAI
T/T, L/C, D/P at sight
CPR, CE, RoHS,ISO9001,REACH
Normally 20 working days
23.5Ω/1000’Max/5% Max
BC / 23AWG(mm)
PE/ 1.04(mm)
PVC / 6.80(mm)
CAT 6
Cat6 Ethernet cable is certified to handle Gigabit Ethernet with a bandwidth of up to 250 MHz. the comprehensive attenuation crosstalk ratio (PS-A CR) of the CAT6 cabling system at 200MHz should have a large margin, which provides 2 times the bandwidth of CAT5e. The transmission performance of CAT6 is much higher than CAT5e, which is most suitable for applications with transmission rates higher than 1Gbps. An important difference between CAT6 and the CAT5e is that: the performance of crosstalk and attenuation is improved. For the new generation of full-duplex high-speed network applications, excellent attenuation performance is extremely important. The basic link model is eliminated in CAT6 cabling standards, adopts the topology of the star shape. The required cabling distance is: the length of the permanent link should not exceed 90m, and the channel length should not exceed 100m。

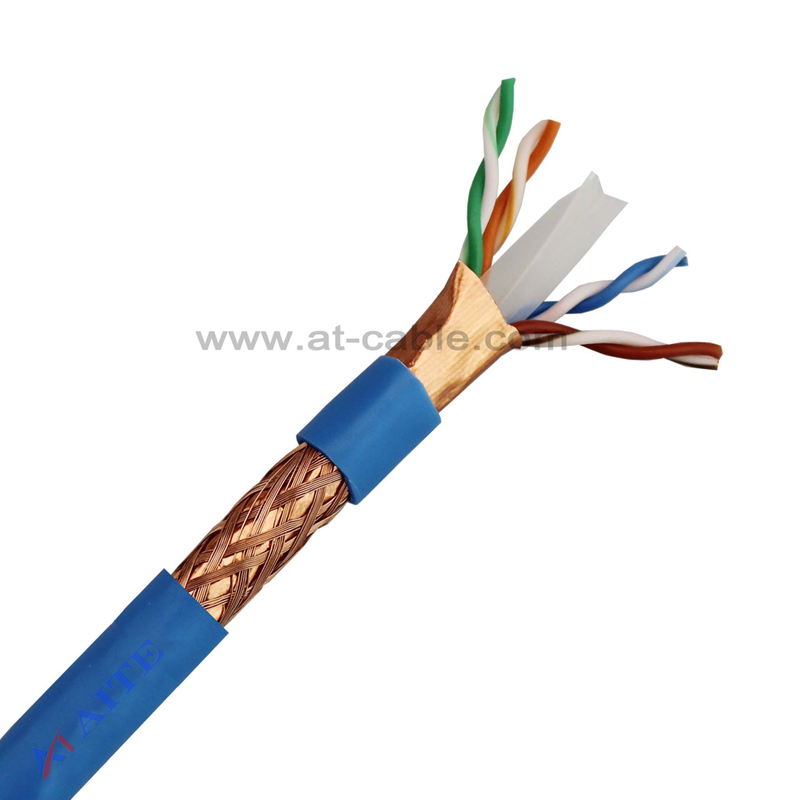

Construction |
Material | Diameter(mm) | |
Conductor | BC | 23AWG |
Insulation | PE | 1.04 |
First Shield | AL Foil shield | |
Second Shield | Copper/Aluminum Braiding | |
Jacket | PVC | 6.80 |
Basic characteristics |
Temperature Rating | -20℃ to 60℃ | ||||
Dielectric Breakdown | 2500V | ||||
DC Resistance/Unbalance | 28.6Ω/1000’Max/5% Max | ||||
Characteristics Impedance | 100 | ||||
Other Electric Performance | Frequency （MHz） | Attenuation （dB/100m） | Return Loss （dB/100m） | Pair to Pair | |
Next (dB/100m） | ELFEXT （dB/100m） | ||||
1.0 | 2.0 | 20.0 | 75.3 | 63.8 | |
4.0 | 3.8 | 23.0 | 66.3 | 51.7 | |
8.0 | 5.3 | 24.5 | 61.8 | 45.7 | |
10.0 | 6.0 | 25.0 | 60.3 | 42.8 | |
16.0 | 7.6 | 25.0 | 57.2 | 39.7 | |
20.0 | 8.5 | 25.0 | 55.8 | 37.7 | |
25.0 | 9.5 | 24.3 | 54.3 | 35.8 | |
31.25 | 10.7 | 23.6 | 52.9 | 33.9 | |
62.50 | 15.4 | 21.5 | 48.4 | 30.0 | |
100.0 | 19.8 | 20.1 | 45.3 | 29.0 | |
155.0 | 25.2 | 18.8 | 42.4 | 28.1 | |
200.0 | 29.0 | 18.0 | 40.8 | 27.8 | |
250.0 | 32.9 | 17.3 | 39.3 | 23.8 | |
400 | 40.8 | 16.9 | 39.3 | 18.8 | |
The Factory |
Hangzhou Aite Cable Co., LTD. is one of the leading manufacturers of coaxial cables，lan cables, security cables, alarm cables, and CCTV cables for camera etc,. With certification of CE, ROHS Compliant, and ISO 9001. Our factory is located in Lin'an, Hangzhou, China, which is only 200kms away from Shanghai, and 40kms away from Hangzhou.
Founded in 2012, our company has blossomed into one of the largest independent manufacturer and exporter in China. We have a study and design team, a professional team of engineers and skilled workers, and also advanced lines and machines which can provide our customers with outstanding quality, service, and price.
Packing |
Why choose us |
Good Price
We provide good factory price to to ensure your profit.
Quality Control
We perform strict inspections on raw materials and production processes. There are four QC steps before cables leave factory. 1. Raw materials incoming test 2. Semi-finished product test for each production line . 3. Finished product test(Construction & Electrical Characteristics) 4. Cable power test and package inspection.
On-time Delivery
Our monthly output is 6000KM. Sample available in 7 days, and normal order delivery time is only 15-25 days.
R&D
Our technical team has rich experience in developing various specifications of cables for customized orders. According to the customized requirements, our team are capable to provide suggestions and designs.
Reliable Service
For before-order stage, our professional sales team are ready to reply your inquiry at first time during working hours and within 12 hours at close time to help you win your client with perfect option at high efficiency.
For order-running stage, our professional service team will update the production and provide documents for shipment in time .
For after-sale stage, our service team always keep close contact with you and always stand by at your service. We’re responsible for all the products during its normal lifetime.
