8AWG, 10AWG, 12AWG, 14AWG, 16AWG, 18AWG, 20AWG, 22AWG
100feet, 500feet, 1000feet, 2500feet, 5000feet, other lengths are availabel upon request
plastic reel, wooden drum, pallet
30KM
NINGBO, SHANGHAI
T/T, L/C,
CE, RoHS, ISO9001, REACH
Normally 20 working days
Bare Copper/CCS
10mil/ 30mil/ 45 mil HDPE/ HMWPE
Application:
Tracer wire is a specialized type of wire used primarily in the utility and construction industries to locate and trace underground utilities. The application of tracer wire is crucial for ensuring safety during excavation and maintenance activities.

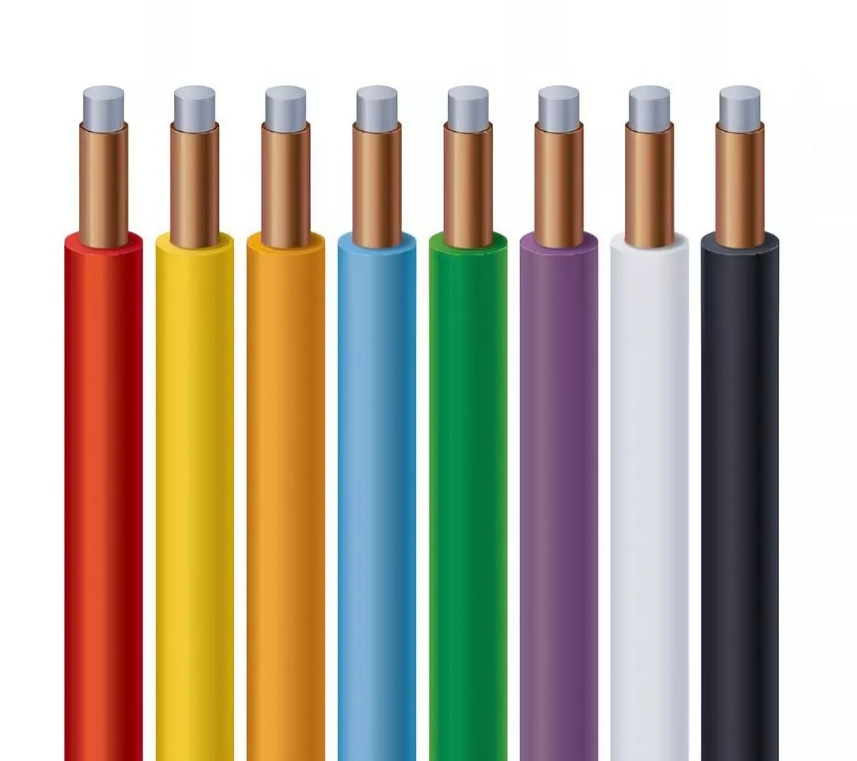

Tracer wire is used to help locate underground utilities and piping, and the color of the wire indicates the type of utility it's associated with. The colors are based on the American Public Works Association (APWA) uniform color code:
• Red: Electrical power
• Yellow: Natural gas, oil, dangerous materials, or product lines
• Orange: Communication, cable television, or fiber optics
• Blue: Water systems
• Purple: Reclaimed water, irrigation, or slurry lines
• Green: Sanitary sewer systems
• Black: Pet containment wire or other color applications based on engineer recommendations
• White: Proposed excavation
Basic Construction and Characteristics |
High flex | High Strength | ||||
Wire Gauge | Break load | Coating thickness | Wire Gauge | Break load | Coating thickness |
18 awg | 75 lb | 30 mil/ 45 mil | 18 awg | 107 lb | 30 mil/ 45 mil |
16 awg | 115 lb | 30 mil/ 45 mil | 16 awg | 144 lb | 30 mil/ 45 mil |
14 awg | 194 lb | 30 mil/ 45 mil | 14 awg | 282 lb | 30 mil/ 45 mil |
12 awg | 302 lb | 30 mil/ 45 mil | 12 awg | 452 lb | 30 mil/ 45 mil |
10 awg | 513 lb | 30 mil/ 45 mil | 10 awg | 684 lb | 30 mil/ 45 mil |
NOTE 1: Various colors are available.
NOTE 2: Other wire Gauge is available upon request.
NOTE 3: Break load can be customized.
NOTE 4: Other coating thickness is available upon request.
Standard |
APAC Compliance | China Rohs(GB/T 26572-2011) |
Quality management system | ISO 9001:2015 |

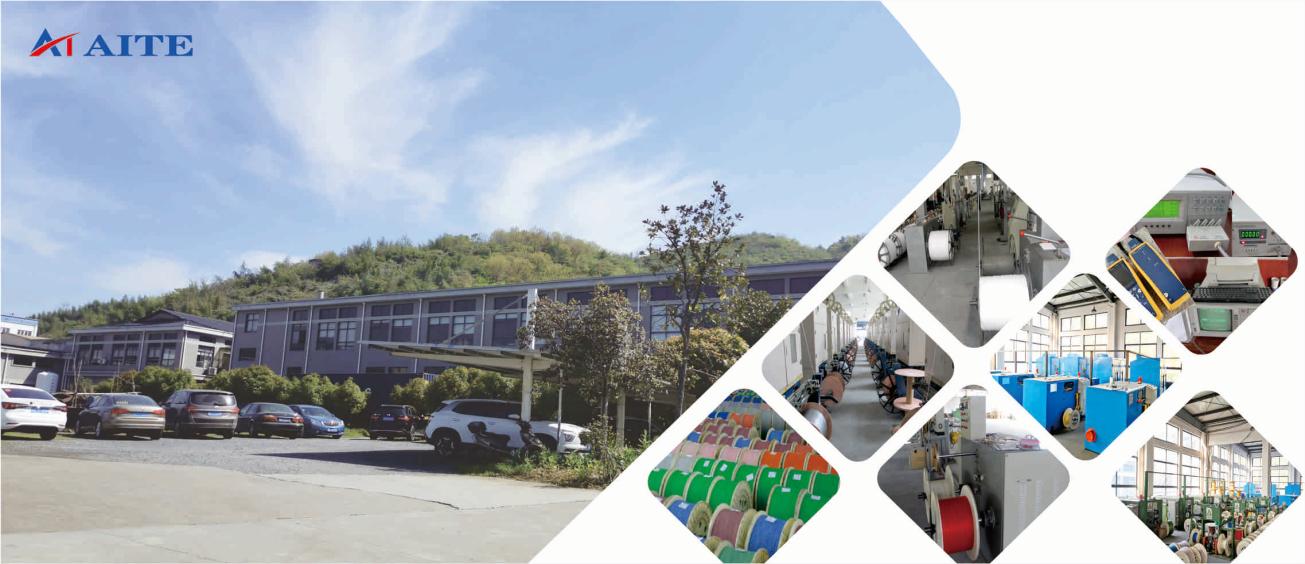

The Factory |
Hangzhou Aite Cable Co., LTD. is one of the leading manufacturers of coaxial cables，lan cables, security cables, alarm cables, and CCTV cables for camera etc,. With certification of CE, ROHS Compliant, and ISO 9001. Our factory is located in Lin'an, Hangzhou, China, which is only 200kms away from Shanghai, and 40kms away from Hangzhou.
Founded in 2012, our company has blossomed into one of the largest independent manufacturer and exporter in China. We have a study and design team, a professional team of engineers and skilled workers, and also advanced lines and machines which can provide our customers with outstanding quality, service, and price.

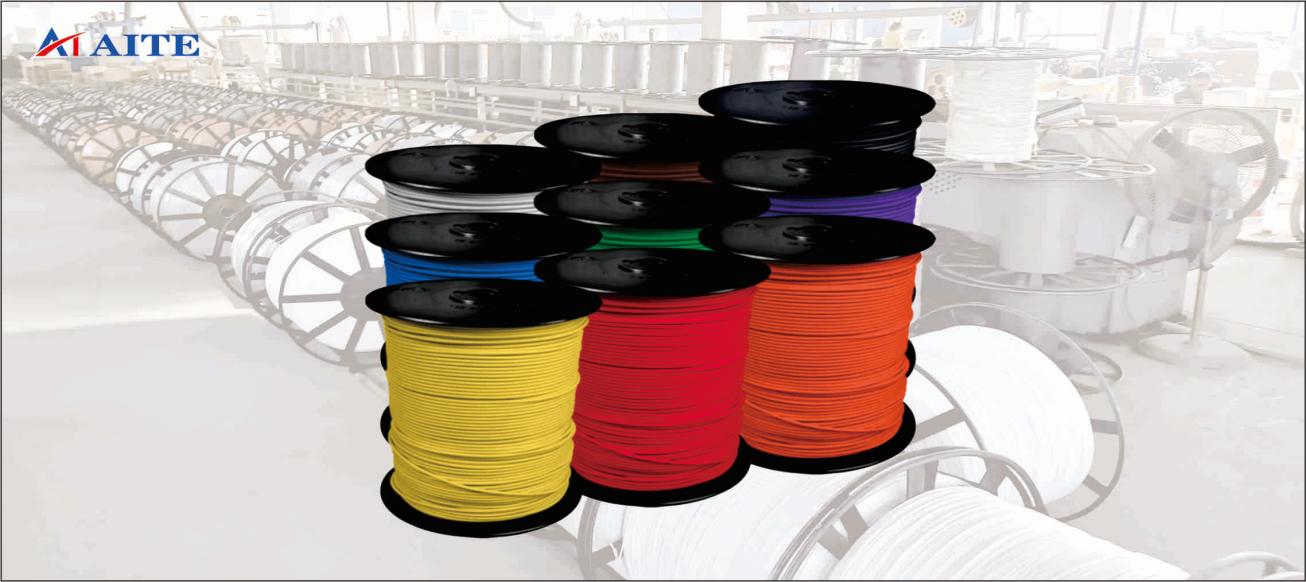

Packing |
Why choose us |
Good Price
We provide good factory price to to ensure your profit.
Quality Control
We perform strict inspections on raw materials and production processes. There are four QC steps before cables leave factory. 1. Raw materials incoming test 2. Semi-finished product test for each production line . 3. Finished product test(Construction & Electrical Characteristics) 4. Cable power test and package inspection.
On-time Delivery
Our monthly output is 6000KM. Sample available in 7 days, and normal order delivery time is only 15-25 days.
R&D
Our technical team has rich experience in developing various specifications of cables for customized orders. According to the customized requirements, our team are capable to provide suggestions and designs.
Reliable Service
For before-order stage, our professional sales team are ready to reply your inquiry at first time during working hours and within 12 hours at close time to help you win your client with perfect option at high efficiency.
For order-running stage, our professional service team will update the production and provide documents for shipment in time .
For after-sale stage, our service team always keep close contact with you and always stand by at your service. We’re responsible for all the products during its normal lifetime.
