Author: Site Editor Publish Time: 2026-04-24 Origin: Site
Tracer wire is installed with non-metallic gas pipelines so locating crews can trace the buried route from the surface before excavation, repair, or maintenance.
For North American gas line projects, yellow insulation is commonly selected according to utility color code practice, project specifications, or local utility requirements. AITE Cable supplies solid copper-clad steel tracer wire for open trench and HDD gas line locating applications.
Non-metallic gas pipes, such as PE gas lines, cannot be directly detected by standard electromagnetic locating equipment. A conductive tracer wire is commonly installed with the pipeline to help locate the buried utility route after backfilling.

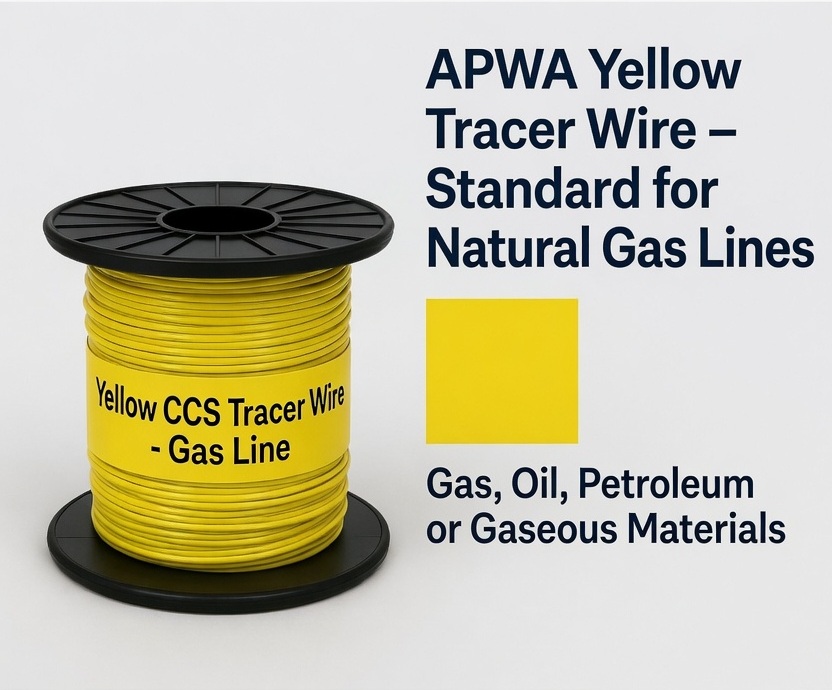

Under APWA color code practice, yellow is used for gas, oil, steam, petroleum, or gaseous materials. In actual projects, the final tracer wire color should follow the project specification, local utility requirement, or engineer’s instruction.
The right gas line tracer wire depends on how the pipeline is installed. Open trench projects usually prioritize field handling and burial durability. HDD and trenchless projects require higher break load because the wire may be exposed to pulling force during installation.
| Installation Method | Recommended AITE Series | Main Selection Factor | Related Product |
|---|---|---|---|
| Open Trench / Open Cut | High-Flex or High-Strength CCS Tracer Wire | Easier handling, direct burial insulation, or higher break load for demanding backfill | Open Trench CCS Tracer Wire |
| HDD / Directional Drilling | Extra High-Strength CCS Tracer Wire | Higher pulling force, longer runs, trenchless installation, and rugged soil conditions | HDD CCS Tracer Wire |

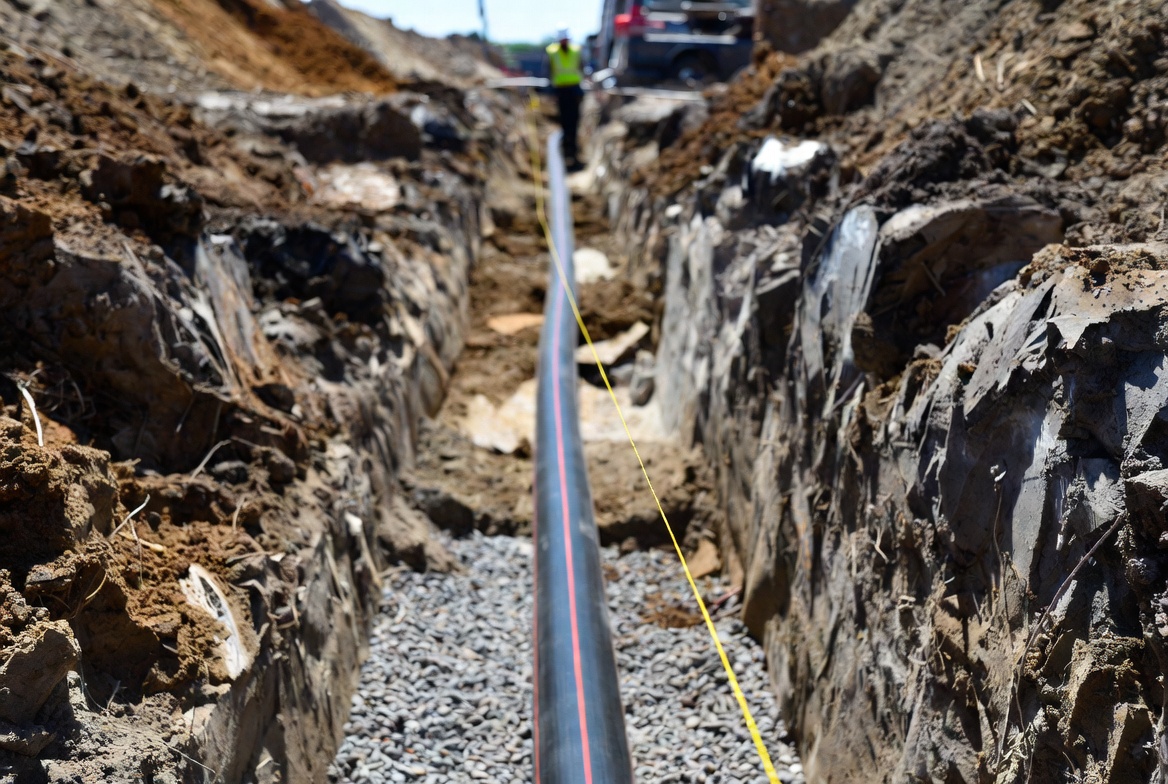

Recommended when open trench contractors need easier handling, lower recoil, and better flexibility during routing, bending, and connection.
Recommended for open trench gas line projects that require higher break load and stronger installation durability.

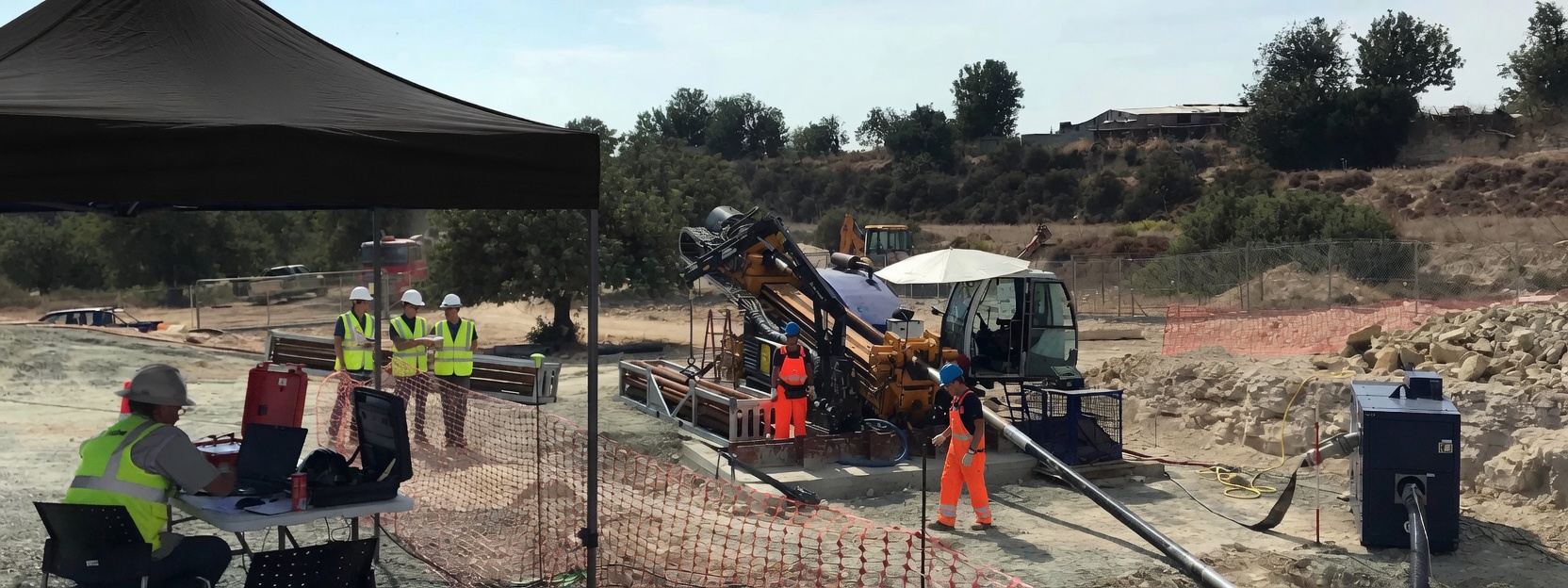

Recommended for horizontal directional drilling, directional boring, and trenchless gas line installation.
AITE Cable supports OEM production for gas line tracer wire buyers, including insulation color, wire marking, spool length, and packaging.

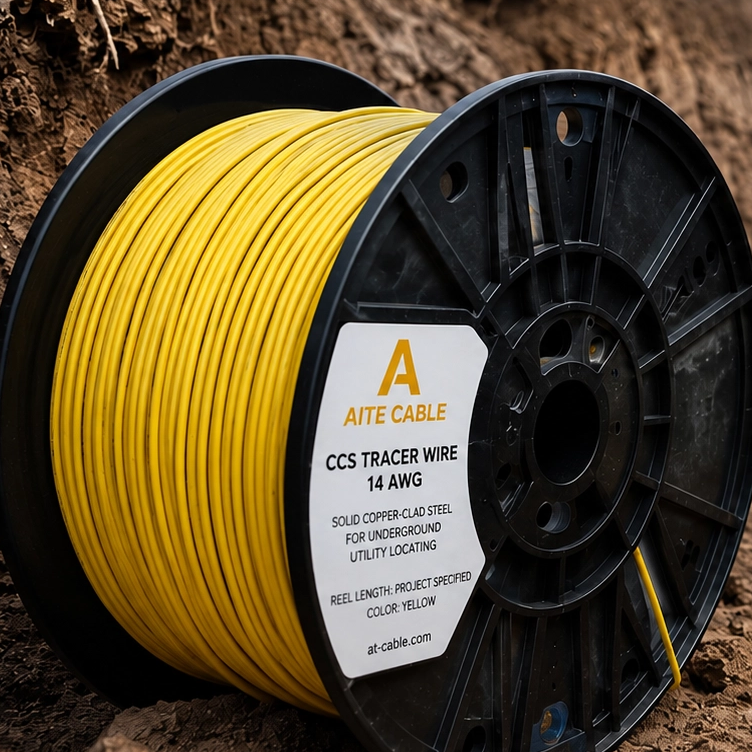

Both copper-clad steel and solid copper tracer wire can be used in underground utility locating projects. The right choice depends on project specification, installation method, mechanical strength requirement, budget, and buyer preference.
| Factor | Copper-Clad Steel Tracer Wire | Solid Copper Tracer Wire |
|---|---|---|
| Mechanical Strength | Often selected when higher break load or pulling durability is required | Generally selected for conductivity and traditional specification preference |
| Signal Locating | Designed to provide a conductive path for locating equipment | Provides high copper conductivity for locating signal transmission |
| Cost Consideration | Can be cost-effective depending on copper price, specification, and order quantity | May have higher material cost due to copper content |
| Installation Use | Commonly used for open trench, plow-in, and HDD options when properly selected | Used where project specifications require solid copper conductor |
Always follow the project specification. If the specification requires solid copper, do not substitute CCS without approval from the project owner, engineer, or utility authority.
You do not need to prepare every project detail before contacting AITE Cable. For a quick gas line tracer wire quotation, the most important information is wire gauge, insulation thickness, spool length and estimated quantity. Other details can be confirmed during follow-up communication.
RFQ example: 12 AWG, 45 mil, 2500 ft/reel, yellow, 1 container. If your project has an engineer specification, you can send it together for review.
Tracer wire performance depends not only on wire selection, but also on proper installation. Contractors should follow project drawings, local utility requirements, and installation instructions provided by the project owner or engineer.
Yellow is commonly used for gas, oil, steam, petroleum, or gaseous materials under APWA color code practice. Final color selection should follow the project or local utility specification.
For a quick quotation, buyers can send wire gauge, insulation thickness, spool length and estimated quantity. Yellow color, installation method, marking, packaging and destination port can be confirmed during follow-up communication.
Yes, CCS tracer wire is commonly selected when buyers need a balance of locating performance, mechanical strength, and cost control. Always follow the project specification.
HDD and directional boring projects typically require Extra High-Strength CCS tracer wire because the wire may be exposed to higher pulling force.
Yes. AITE Cable supports custom insulation color, wire marking, spool length, packaging and private-label requirements for OEM tracer wire buyers. These details can be confirmed after the initial RFQ.
