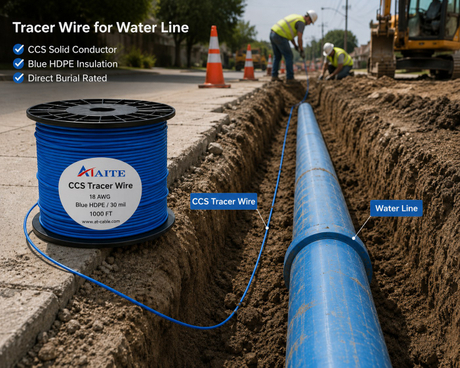

AITE Cable manufactures solid copper-clad steel (CCS) tracer wire for underground water-utility projects to buyer and project specifications. For Open Trench / Open Cut, AITE offers High-Flex and High-Strength CCS. For HDD and directional boring, the current range uses Extra High-Strength CCS.
Already have a project specification, RFQ or current product datasheet? Send it to us with the estimated quantity and destination. We can check the required conductor, AWG, break load, insulation, color, marking, reel length and packaging against our available constructions before quoting.
Send Your Specification Download Datasheet

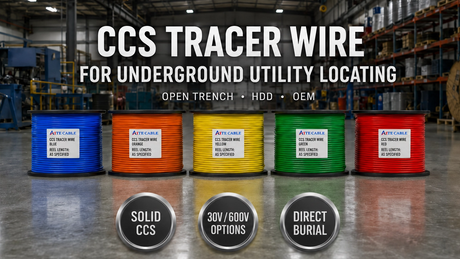

Available CCS constructions are listed below for comparison with your project specification or current product.
| Installation | AITE Series | Conductor | AWG | Insulation / Voltage |
|---|---|---|---|---|
| Open Trench / Open Cut | High-Flex CCS | Solid copper-clad soft steel | 18–10 AWG | 30 mil / 30V or 45 mil / 600V |
| Open Trench / Open Cut | High-Strength CCS | Solid copper-clad hard steel | 18–8 AWG | 30 mil / 30V or 45 mil / 600V |
| HDD / Directional Boring | Extra High-Strength CCS | Solid copper-clad steel | 12 / 10 / 8 AWG | 45 mil / 600V |
Open Trench product specifications · HDD product specifications
Compare the break load values below with your project specification or existing product requirement.
| AWG | High-Flex Open Trench | High-Strength Open Trench | Extra High-Strength HDD |
|---|---|---|---|
| 18 AWG | 75 lb | 107 lb | — |
| 16 AWG | 115 lb | 144 lb | — |
| 14 AWG | 194 lb | 282 lb | — |
| 12 AWG | 302 lb | 452 lb | 1,190 lb |
| 10 AWG | 513 lb | 684 lb | 2,050 lb |
| 8 AWG | — | 840 lb | 2,785 lb |
Break load is product data, not tensile strength. Use the required minimum break load in the project or buyer specification when checking product fit.
AITE's applicable CCS tracer wire constructions use HMWPE/HDPE direct-burial insulation.
| Insulation | Voltage | Available Series |
|---|---|---|
| 30 mil HMWPE/HDPE | 30V | High-Flex / High-Strength Open Trench |
| 45 mil HMWPE/HDPE | 600V | High-Flex / High-Strength Open Trench and current Extra High-Strength HDD |
A 45 mil / 600V construction is also available in the Open Trench range; insulation thickness alone does not define an HDD construction.
Under the APWA Uniform Color Code, blue identifies potable water. Purple is used for reclaimed water, irrigation and slurry lines.
For OEM or project orders, specify the required insulation color in the RFQ. The project or utility specification should control the final color.
Reference: APWA Uniform Color Code
AITE can manufacture water-line tracer wire with buyer-specified marking, reel length, labels and packaging.
| Color | Blue, purple or another project-specified color |
|---|---|
| Surface Marking | Buyer, project or private-label marking |
| Reel / Drum Length | 500 ft, 1,000 ft and 2,500 ft common public lengths; other lengths available upon request |

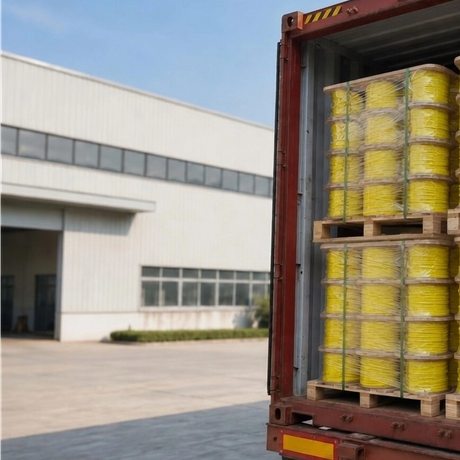

| Packaging | Plastic reel, wooden drum, pallet or project-specific packaging where applicable |
| Private Label | Buyer-defined labels and packaging can be reviewed for OEM orders |
Send us the current datasheet, drawing or RFQ. We can check whether our conductor, AWG, break load, insulation, marking and packaging match the requirement before quoting.
If there is a difference between your specification and our standard construction, we will identify it before product confirmation. If the project specifically requires solid copper, CCS should not be treated as an automatic substitute.
Product datasheets and applicable technical documentation can be provided for project, distributor or supplier review. If your approval process requires specific documents, include the list with the RFQ so we can confirm availability for the quoted construction.
Download AITE CCS Tracer Wire Datasheet
The easiest way to quote a defined requirement is to send the existing project specification or product datasheet together with quantity and destination.
If you are sending the requirement in text, include the applicable details:
View the Tracer Wire RFQ Checklist
Yes. Send the specification or current datasheet and we can compare the required conductor, AWG, break load, insulation, color, marking and packaging with our available constructions.
AITE provides break-load data for its High-Flex, High-Strength and Extra High-Strength CCS series. Refer to the table above or the CCS tracer wire datasheet for the value by AWG and series.
No. Under the APWA Uniform Color Code, blue identifies potable water, while purple identifies reclaimed water, irrigation and slurry lines. Follow the project or utility specification for the final color.
Yes. OEM requirements can include insulation color, surface marking, reel or drum length, labels, packaging and private-label specifications.
Send your specification, current datasheet or RFQ with quantity, reel length, packaging requirements and destination for project pricing.
