8 AWG, 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG; other gauges available upon request
500feet, 1000feet, 2500feet, other lengths are available upon request
plastic reel, wooden drum, pallet
60 KM
NINGBO, SHANGHAI
T/T, L/C,
RoHS, ISO9001, REACH
Normally full container 2-3 weeks
Open Trench / Open Cut
Copper Clad Steel
30 mil/ 45 mil HDPE/ HMWPE

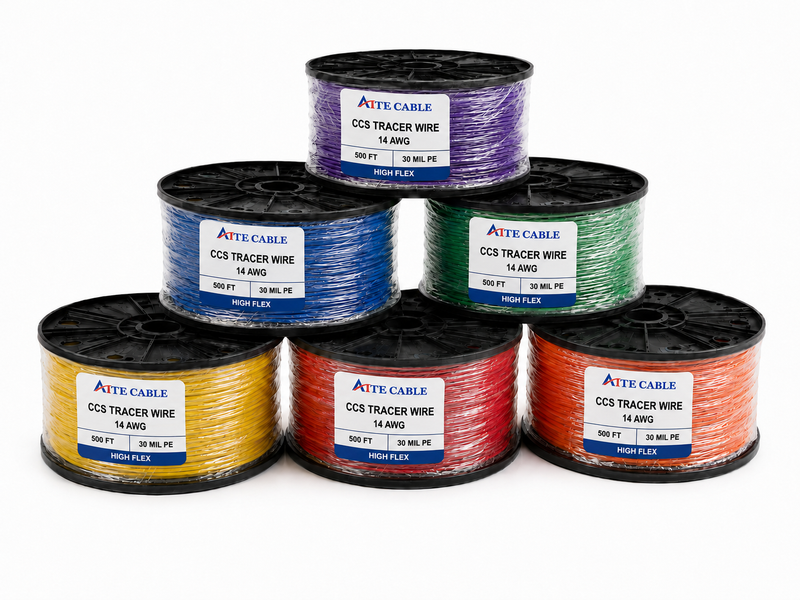

AITE Cable manufactures High-Flex and High-Strength solid copper-clad steel (CCS) tracer wire for Open Trench and Open Cut underground utility projects.
High-Flex uses copper-clad soft steel for easier handling, while High-Strength uses copper-clad hard steel for higher break load. Both series are available with 30 mil / 30V or 45 mil / 600V HMWPE/HDPE direct-burial insulation.
| Series | Conductor | AWG Range | Main Characteristic |
|---|---|---|---|
| High-Flex CCS | Copper-clad soft steel | 18–10 AWG | Easier handling and routing |
| High-Strength CCS | Copper-clad hard steel | 18–8 AWG | Higher product break load |
| AWG | High-Flex | High-Strength | Insulation / Voltage |
|---|---|---|---|
| 18 | 75 lb | 107 lb | 30 mil / 30V or 45 mil / 600V |
| 16 | 115 lb | 144 lb | 30 mil / 30V or 45 mil / 600V |
| 14 | 194 lb | 282 lb | 30 mil / 30V or 45 mil / 600V |
| 12 | 302 lb | 452 lb | 30 mil / 30V or 45 mil / 600V |
| 10 | 513 lb | 684 lb | 30 mil / 30V or 45 mil / 600V |
| 8 | — | 840 lb | 30 mil / 30V or 45 mil / 600V |
Custom break load is available upon request.
Have an existing specification, supplier datasheet, drawing or RFQ? Send it directly to AITE with the estimated quantity.
If a complete specification is not available, send the AWG, insulation thickness, color and estimated quantity.
